Parts List


External Pipe Holder Side Mount Attachment Kit
Z Bracket Kit includes:
Two HDG "Z" Brackets
Four U Bolts with Nuts & Washers

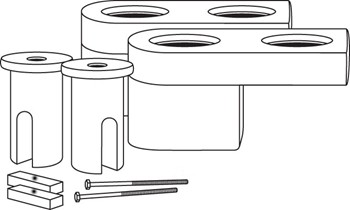

2 External Pipe Holder
2 Structure Plugs
2 UHMW Blocks



NOTE !! Kit DOES NOT INCLUDE 4" PVC PIPE.

4" PVC Pipe may be purchased at
your local hardware store.

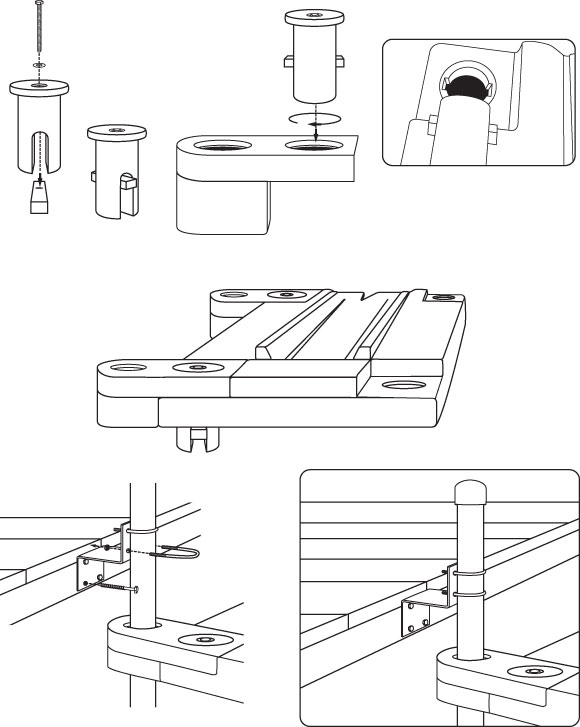

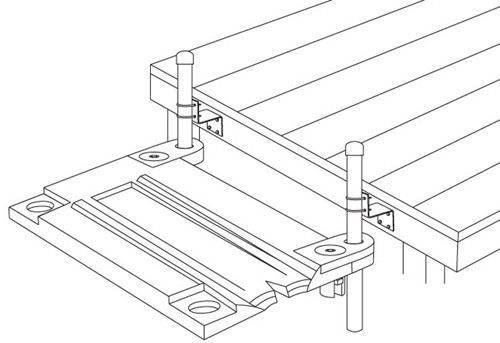

External Pipe Holder Side Mount Attachment Kit Bracket Kit needs to installed above flood level

  4" PVC Pipe needs to be AT LEAST 18" Below The Watercraft Float.


Recommended hardware includes: four 1/2 lag screws and four 1/2 washers that are Hot Dipped Galvanized
4" PVC Pipe needs to be AT LEAST 18" Below The Watercraft Float.
